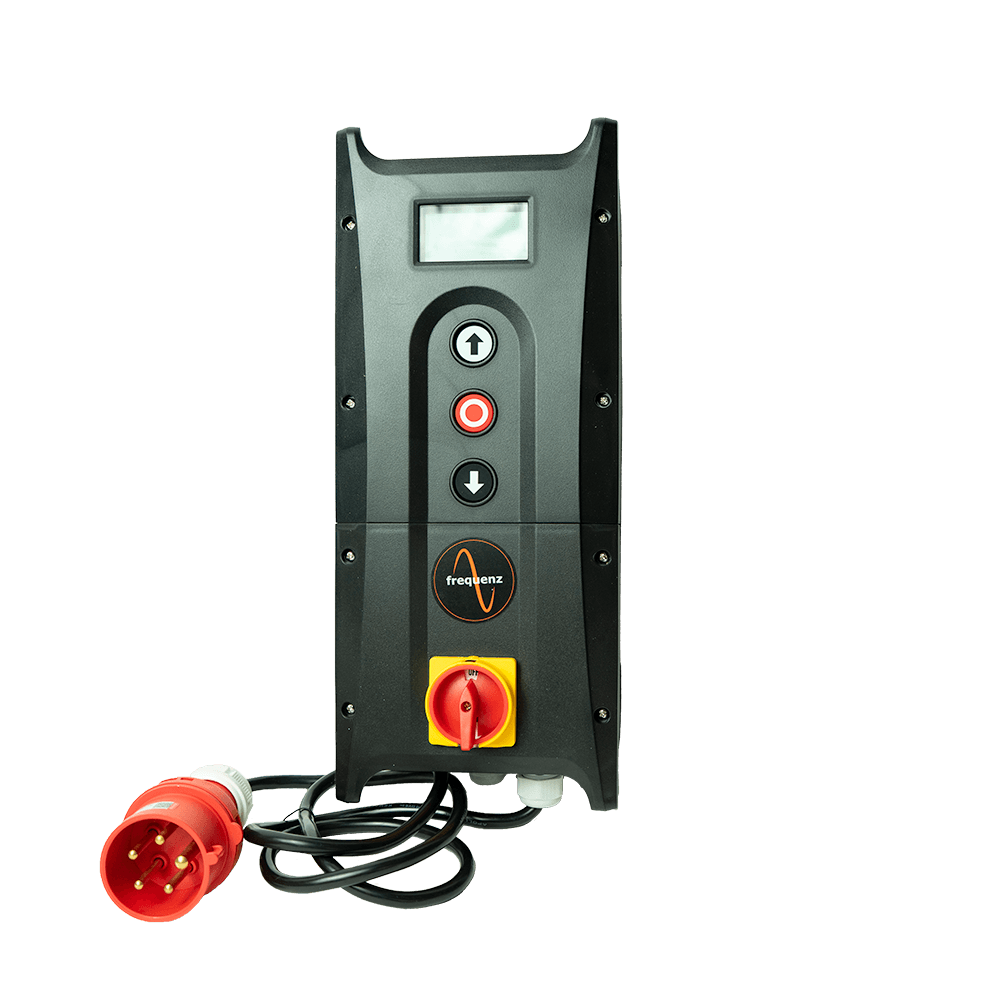

Frequenz Control unit suitable for Hörmann
Art. nr.: 19010014The new Frequenz IDD-HO CU can be used to replace the 445AB control boxes used on the WA400, WA400M or ITO400 motor of Hörmann.
The IDD-HO-CU is based on the standard Frequenz 230/400 Volt unit but is reprogrammed so it can be used to replace the 445 Control Units.
The features:
- Simple plug and play installation
- Control is pre-programmed for WA400
- Including adapter boards to connect the “telephone” plugs to the electronic limit-switch and the safety edge
- Just program the end positions: done!
- Display in clear language.
- Display standard in English. Dutch, German and French available.
- 3 programmable relais (for instance for traffic lights) on board
- Extra adapterboards to connect Photocells with “telephone” plugs available.
In other words: the simple solution, works without programming and for the advanced user lots of extra’s (that you can use, but don’t have to).
- Weight:
- 3,14 Kg
- Unit:
- piece
- Manual
- Download
