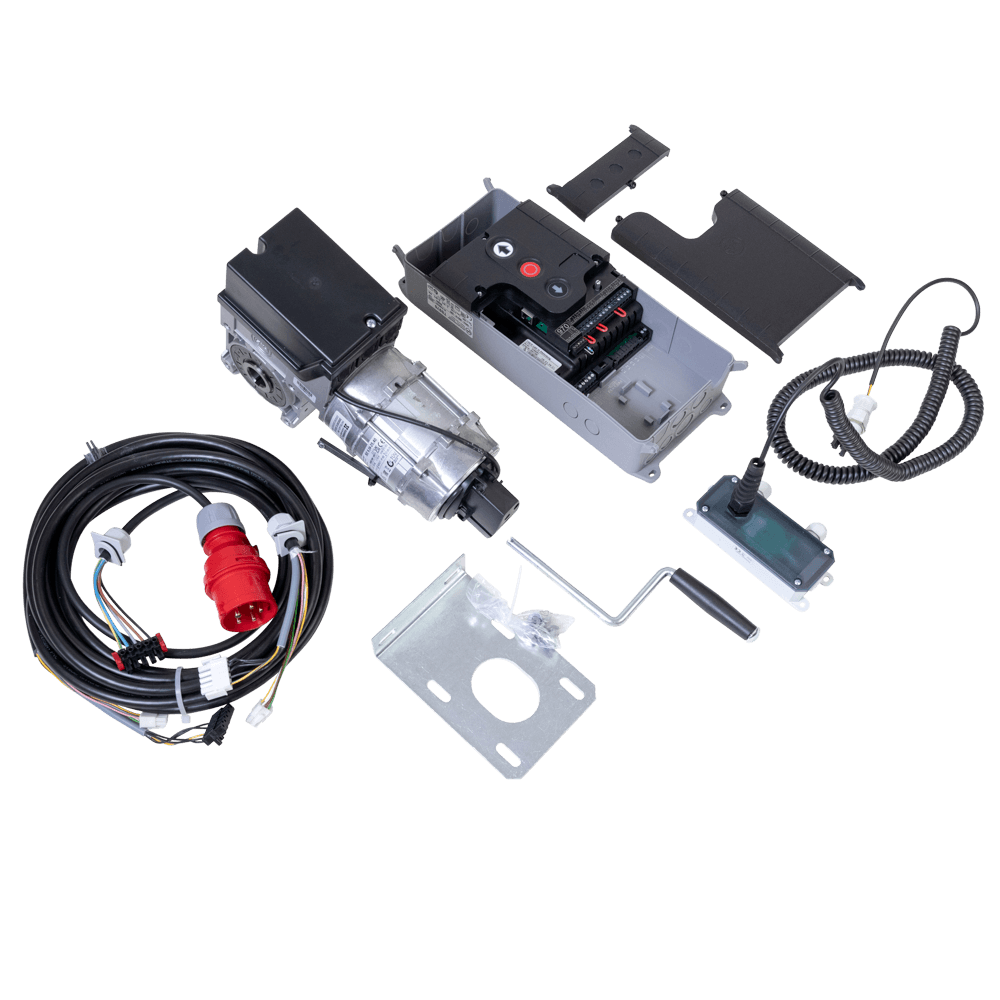

GFA operator, complete, 90Nm, with plug connection
Art. nr.: 110005001GFA operator SE 9.24-25,40 DES NHK including motor support, control box TS 970N, 7 meter cable and pneumatic safety edge, couple 90Nm, 24 r.p.m, shaft hole 25,4mm, IP 65, 3x400Volt, Neutral and earth, 50HZ, digital limit Switches, max door weight 300 kg, emergency operation with crank handle
- Weight:
- 16,7 Kg
- Unit:
- Set
- Door brand:
- GFA, Others, Universal, Alpha Deuren International
Products in this set
-
- Number:
- 110005018
- Name:
- GFA operator, 90Nm
- Quantity:
- 1
- Description:
GFA operator SE 9.24-25,40 DES NHK, without control panel, output torque 90Nm, output speed 24 rpm, shaft hole 25,4mm, IP 65, 3 x 400Volt, 50Hz, digital limit switch, limit switch range 20, hand crank.
-
- Number:
- 110005007
- Name:
- GFA mounting bracket
- Quantity:
- 1
- Description:
GFA mounting bracket for SE operators
-
- Number:
- 110005020
- Name:
- GFA connecting cable, 7 meter
- Quantity:
- 1
- Description:
GFA connecting cable between motor and control box, equipped with plug connector, length 7 meter.
-
- Number:
- 110005051
- Name:
- GFA control panel TS 970 N / T 961 / T 970
- Quantity:
- 1
- Description:
GFA control panel TS 970 N for SE serie operators, Integrated OPEN-STOP-CLOSE control device, UBS module with 5 plug-in points, CEE plug. For all GFA drives with digital limit switch DES. TS 970 N IS THE REPLACEMENT FOR TS 961 AND TS 970.
