90NM/400V/ER/25,4

Products in this set

•

  Number:

  110005024

  Name:

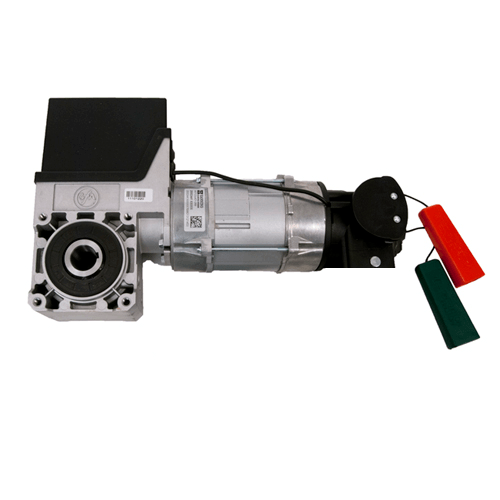

  GFA operator, 90Nm, emergency release system.

  Quantity:

  1

  Description:

  GFA operator SE 9.24-25, 40 DES ER, output torque 90 Nm, output speed 24rpm, shaft hole 25,4mm, IP 65, 3 x 230 Volt, 400Hz, 50Hz, digital limit switch (DES), limit switch range 20, ER disengagement mechanism (spring break device is required), maximum door weight 300 kilos.

•

  Number:

  110005020

  Name:

  GFA connecting cable, 7 meter

  Quantity:

  1

  Description:

  GFA connecting cable between motor and control box, equipped with plug connector, length 7 meter.

•

  Number:

  110005051

  Name:

  GFA control panel TS 970 N / T 961 / T 970

  Quantity:

  1

  Description:

  GFA control panel TS 970 N for SE serie operators, Integrated OPEN-STOP-CLOSE control device, UBS module with 5 plug-in points, CEE plug. For all GFA drives with digital limit switch DES. TS 970 N IS THE REPLACEMENT FOR TS 961 AND TS 970.

•

  Number:

  110017001

  Name:

  Mounting bracket for operators

  Quantity:

  1

  Description:

  Mounting bracket for operators
