Art. nr.: 110018069
This kit contains an operator GFA 140NM - 400V - chain release - for 1,25"shafts, Control unit GFA TS970 - motor bracket and cable 7 meters.
Weight:
20 Kg
Unit:
set
Door brand:
GFA
Products in this set
Number:
110005050
Name:

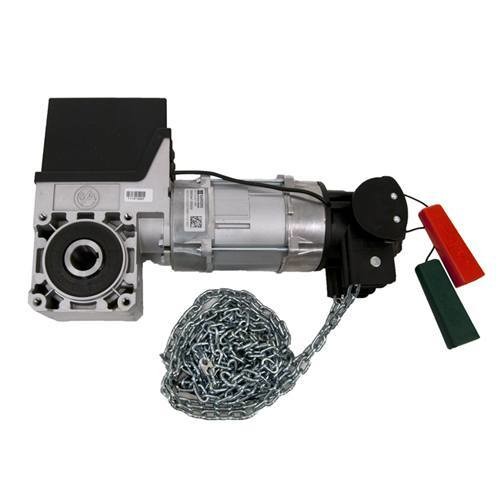

GFA operator, 140Nm, rapid hand chain operator SK, 1,25 inch
Quantity:
1
Description:
GFA operator SE 14.21-31,75 DES SK ( rapid hand chain operator ), output torque 140Nm, output speed 21rpm, shaft hole 31,75mm, IP 65, 3x400 Volt, 50Hz, digital limit switch, limit switch range 14, door weight 375 kilo.
Number:
110005051
Name:
GFA control panel TS 970 N / T 961 / T 970
Quantity:
1
Description:
GFA control panel TS 970 N for SE serie operators, Integrated OPEN-STOP-CLOSE control device, UBS module with 5 plug-in points, CEE plug. For all GFA drives with digital limit switch DES. TS 970 N IS THE REPLACEMENT FOR TS 961 AND TS 970.
Number:
110005020
Name:
GFA connecting cable, 7 meter
Quantity:
1
Description:
GFA connecting cable between motor and control box, equipped with plug connector, length 7 meter.
