This kit contains an operator GFA 50NM - 400V - Chain release - for 1"shafts, Control unit GFA TS970 - motor bracket and cable 7 meters.
Weight:
20 Kg
Unit:
set
Door brand:
GFA
Products in this set
Number:
110017003
Name:

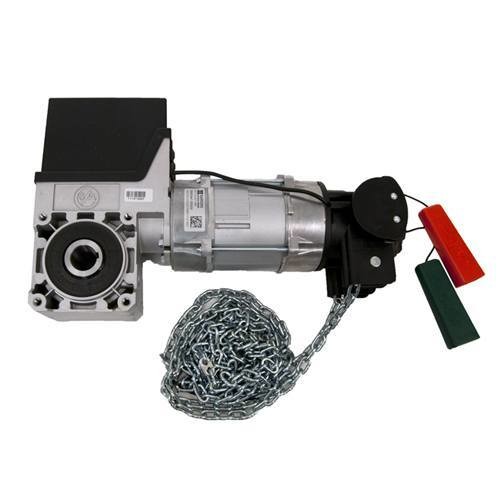

GFA driver SE 5.24-25,40 DES SK (chain emergency control)
Quantity:
1
Description:
GFA driver SE 5.24-25,40 DES SK (chain emergency control), torque 90Nm, 24 Rpm, shaft hole 25,4mm, IP 65, 3x 400V, neutral and earth, 50Hz, digital end switches, switching range of 20 rotations, emergency manual operation with chain.
Number:
110005051
Name:
GFA control panel TS 970 N / T 961 / T 970
Quantity:
1
Description:
GFA control panel TS 970 N for SE serie operators, Integrated OPEN-STOP-CLOSE control device, UBS module with 5 plug-in points, CEE plug. For all GFA drives with digital limit switch DES. TS 970 N IS THE REPLACEMENT FOR TS 961 AND TS 970.
Number:
110005020
Name:
GFA connecting cable, 7 meter
Quantity:
1
Description:
GFA connecting cable between motor and control box, equipped with plug connector, length 7 meter.
