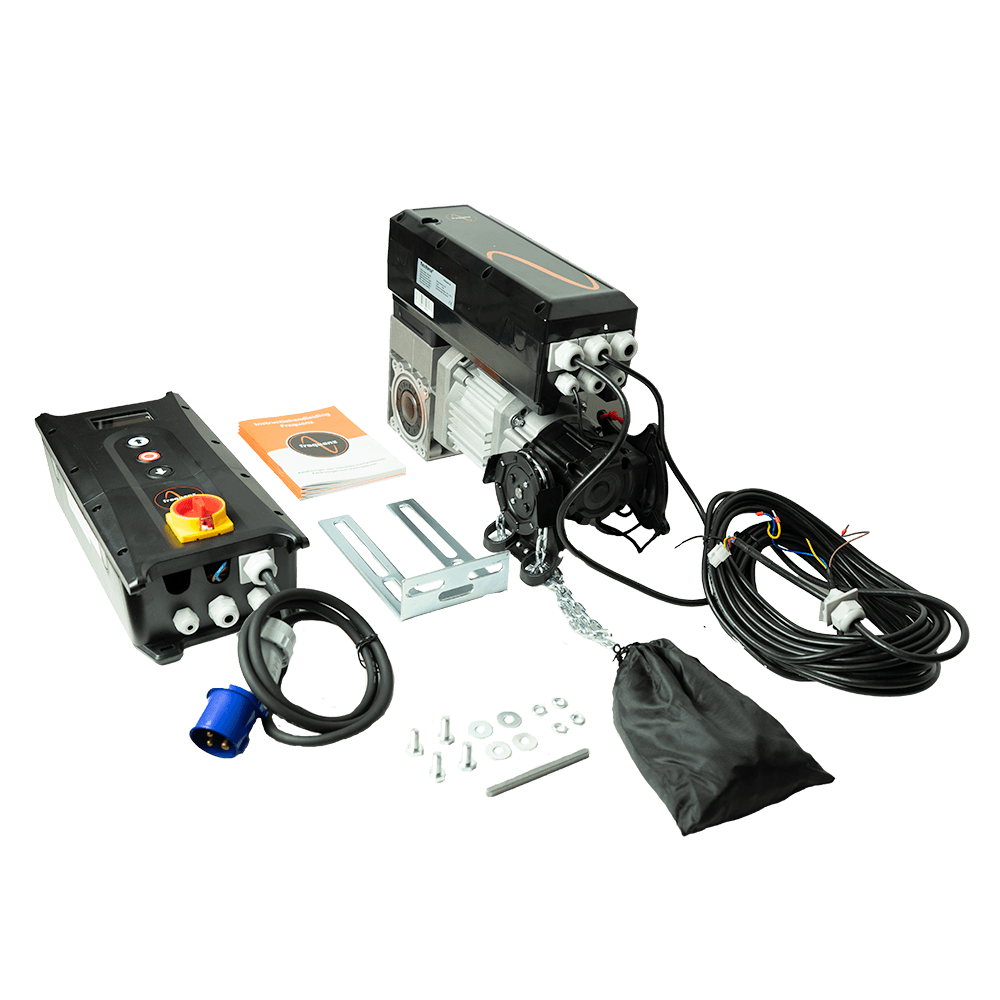

Frequenz FU28

Products in this set

•

  Number:

  19010001

  Name:

  Frequenz FU28

  Quantity:

  1

  Description:

  Frequenz 100-230-var.-25.4 (alt: 100Nm-230V-variable sp. 25.4mm)

   - Torque of 100Nm for doors up to approx. 28 square meters
  - Supply voltage 230-volt 1 phase
  - Variable speed with frequency converter
  - Soft start/soft stop, speed opening and closing separately adjustable
  - For doors with a shaft of 25.4 mm or 1 inch
  - Emergency operation with hand chain (no spring break device required)
  - Control unit with back-lit LCD display
  - Text menu-driven programming (no codes)
  - Programming in 4 languages
  - Digital electronic limit switches
  - Connection for 2 safety devices, additional push buttons, remote control, etc.
  - 3 potential-free relays, freely programmable (e.g. for traffic lights)
  - 24 V, 750 mA DC power supply for external components
  - Cable length 7 meters

   Available as an optional extra
  - Plug in receiver 868Mhz 3 channels
  - Remote control transmitters 868 Mhz 4-channel and 15-channel
  - Set of connection cables 11 meters between control unit and drive

   Frequenz brochure EN

•

  Number:

  110017001

  Name:

  Mounting bracket for operators

  Quantity:

  1

  Description:

  Mounting bracket for operators
